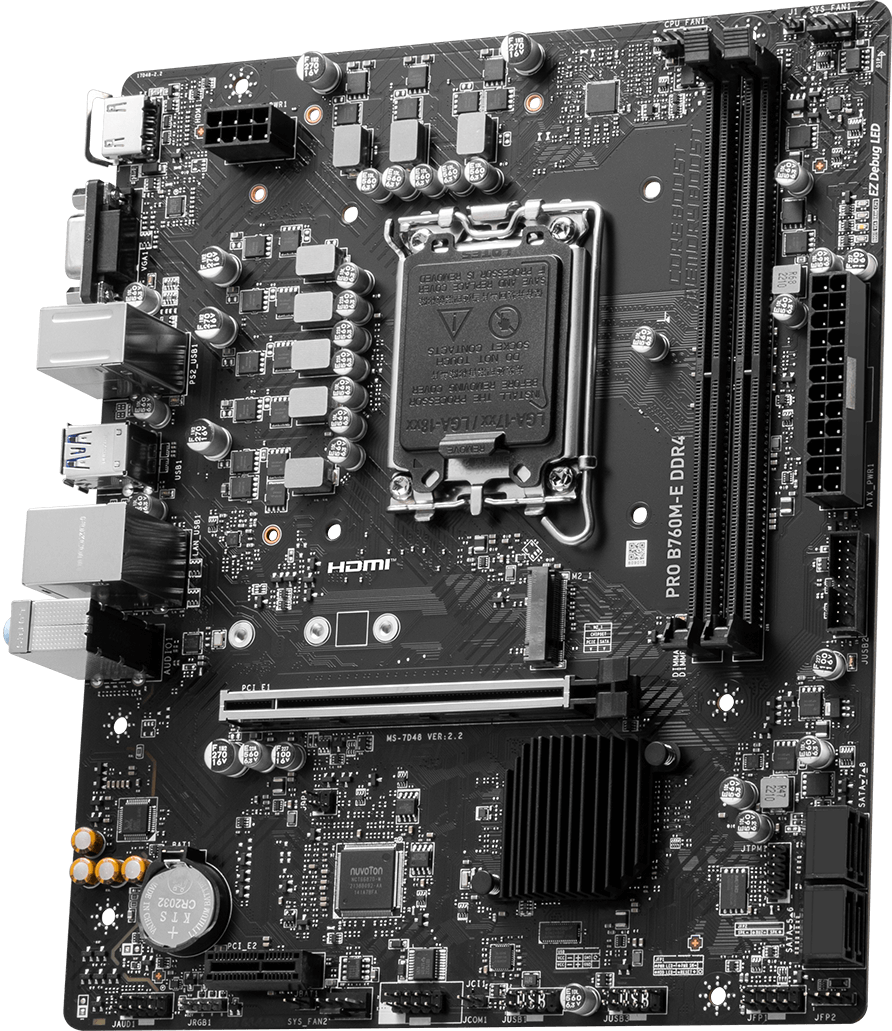

MSI PRO B760M-E DDR4 mATX Motherboard

FEATURES

• Lightning Gen4 Solution – The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
• PCI-E Steel Armor – Protecting VGA cards against bending and EMI.
• EZ Debug LED – Easiest way to troubleshoot.
• Frozr AI Cooling – Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
• Memory Boost – Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
• Core Boost – With premium layout and fully digital power design to support more cores and provide better performance.
• Audio Boost –Reward your ears with studio grade sound quality for the most immersive audio experience.

SPECIFICATIONS

• Model Name PRO B760M-E DDR4
• CPU Support Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• CPU Socket LGA 1700
• Chipset Intel® B760 Chipset
• Expansion Slots 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
• Display Interface Support 4K@30Hz as specified in HDMI™ 1.4, VGA – Requires Processor Graphics
• Memory Support 2 DIMMs, Dual Channel DDR4-4800+MHz(OC)
• Storage 1x M.2 Gen4 x4 64Gbps slot, 4x SATA 6Gbps ports
• USB ports 4x USB 3.2 Gen 1 5Gbps (4 Type-A), 8x USB 2.0
• LAN Realtek® RTL8111H Gigabit LAN
• Audio 8-Channel (7.1) HD Audio with Audio Boost
